Field Mount Temperature Transmitters

Share to:
  • High accuracy: ±0.1℃ for RTD; ±1℃ for TC, code end accuracy ±2℃;
  • 4~20mA/Hart/Profibus PA output all available;
  • Long-term drift<0.1/year;
  • Install easily, more flexiable;
  • To reduce the overall cost of installation,maintenance and running;
  • Self-diagnostics function;
  • LCD display, Menu-guided operation.
Availability:
Quantity:

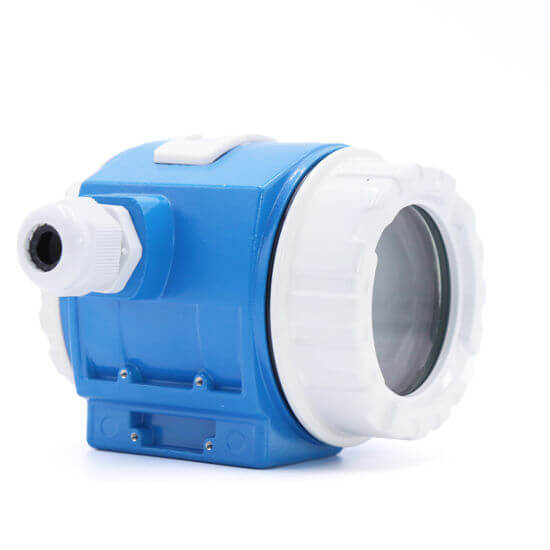

Field Mounted Temperature Transmitters Introduction

Field-mount temperature transmitters are designed with a dual compartment housing that keeps moisture, humidity, or other contaminants from getting into the transmitter's electronics.

This particular kind of temperature transmitter comes installed in its own exterior housing, which enables it to be used “in the field” where conditions may call for extra protection, such as in high-performance industrial operations. Field mounted transmitters can be located relatively close to the sensor to increase the strength of the signal.


Field Mounted Temperature Transmitters Feature


Key Features

  • RTD or TC input, analog output

  • High definition local operator interface (LOI) with 3 optical buttons

  • Selectable red or white backlight

  • Ex d explosion proof / flame proof aluminum head

  • HART 7 functionality with HART 5 compatibility

High Definition Display

  • 0, 90, 180, & 270 degree position adjustments

  • Monitoring, programming and diagnostics view

  • Extensive diagnostics with flashing red or white backlight

Local Operator Interface (LOI)

  • 3 optical buttons; up, down and enter

  • Dynamically adaptive to wear or accumulation of dirt

  • Immune to interference from ambient light sources

  • Useable with or without gloves

Configuration

  • From the LOI through guided menu

  • PReset and HART modem

  • HHC, DCS or AMS via HART

Mounting / Installation

  • For installation in zone 0, 1, 2 and zone 20, 21, 22 and in Class 1, Division 1 and 2 applications

  • Hardware assessed for use in SIL 2 applications

  • Mounting on 1.5”–2” pipe bracket or on wall / bulkhead


Field Mounted Temperature Transmitters Specification


Field Mounted HART Temperature Transmitter features a local display, HART compatibility, and a 4-20mA output. The field mounted transmitter is available as a complete RTD or thermocouple assembly customized to your process.




Specification


Measuring media
liquid, gas and steam
Measuring range
-270~800 ℃ (PT100 thermal resistor)
Input
Thermocouple, RTD, MV, Resistive sensor
Output signal
4~20mA/Hart/Profibus PA
Display
LCD
Power supply range
9~45V (9~24V, Ex)
Digital Accuracy
±0.01℃, PT100 input
Internal cold end compensation error
<0.25℃±0.1%/10℃
Temperature drift
±0.05%/10℃full scale range
Effect of power supply on range
<0.005%/V full-scale range
Long term drift
<0.1/year
Ambient temperature
T4-40...85℃
Storage temperature
-40...95℃
Protection Class
IP66/67
Relative humidity
≤98%, condensation allowed
Electromagnetic capability
Accordance with EN 61 326


-Manuals

Field Mounted Temperature Transmitters

-Data sheet


Field Mounted Temperature Transmitters Application


  • Linearized temperature measurement with TC and RTD sensors e.g. Pt100 and Ni100

  • HART communication and 4…20 mA analog PV output for individual, difference or average temperature measurement of up to two RTD or TC input sensors

  • Up to 63 transmitters (HART 7) can be connected in a multidrop communication setup


Field Mount Temperature Transmitters application
