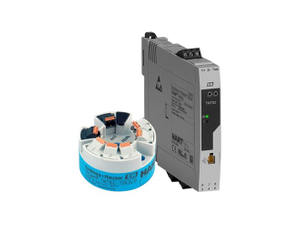

E+H ITEMP TMT182 Temperature Head Transmitter

Share to:
  • Front end unit or panel unit operation
  • High accuracy in total ambient temperature range
  • Fault signal on sensor break or short circuit
  • EMC to NAMUR NE 21, CE
  • Ex-Certification
  • Galvanic isolation
  • SIL 2 compliant
Availability:
Quantity:

iTEMP TMT182 Temperature Transmitter Introduction

E+H iTEMP TMT182 Temperature Transmitter is a 2-wire transmitter with analog output. It has measurement input for resistance thermometers (RTD) in 2-, 3- or 4-wire connection, thermocouples and voltage transmitters. Setting up of the TMT182 is done using the HART Protocol with hand operating module (DXR275, DXR375) or PC (e.g. configuration software ReadWin® 2000 or FieldCare).

iTEMP TMT182 Temperature Transmitter Feature

  • Front end unit or panel unit operation using the hand operating module or PC

  • High accuracy in total ambient temperature range

  • Fault signal on sensor break or short circuit, NAMUR NE 43 compliant

  • EMC to NAMUR NE 21, CE

  • Ex-Certification: ATEX Ex ia and dust zone 22 in compliance with EN 50281-1; FM IS; CSA IS

  • Galvanic isolation

  • Marine approval


iTEMP TMT182 Temperature Transmitter Specification


  • Measuring principle

    Head transmitter

  • Input

    1 x RTD, TC, Ohm, mV

  • Output

    1 x analog 4...20 mA

  • Auxiliary power supply

    11,5...35 V DC (standard-version)
    11,5...30 V DC (Ex-version)

  • Communication

    HART-protocol

  • Installation

    Terminal head form B

  • Accuracy

    (Pt100, -50...200 °C) <= 0,2 K
    (Pt100, -58...392 °F) <= 0,4 °F

  • Galvanic isolation

    yes

  • Certification

    UL Ex IS
    UL Ex NI
    Marine approval
    GOST Ex i
    FM IS,NI,Class I,Div.1+2,Group ABCD
    CSA IS,NI,Class I,Div.1+2,Group ABCD
    ATEX II1G Ex ia IIC T4/T5/T6
    ATEX II3G Ex nA IIC T4/T5/T6
    ATEX II3D
    ATEX II1G Ex ia IIC T6, II3D
    ATEX II3G Ex nA IIC T6, II3D
    FM+CSA IS,NI,Class I,Div.1+2,Group ABCD
    CSA General Purpose
    IECEx Ex ia IIC T6/T5/T4
    ATEX IECEx II1G Ex ia IIC T6 Ga
    NEPSI Ex ia IIC T4-T6
    NEPSI Ex nA II T4-T6
    EAC Ex ia
    GL (German Lloyd)
