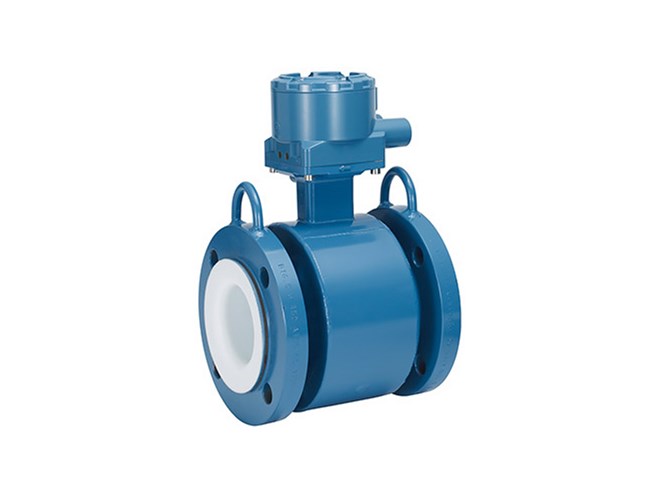

Rosemount 8705 Flanged Magnetic Flow Meter Sensors

Share to:
  • Welded, sealed coil housing
  • 0.25% standard accuracy(0.15% high accuracy option available)
  • 7-16Ω sensor coil resistance
  • 39.37 ft/s (12 m/s) upper range limit
  • 1/2 to 36-inch sizes available
  • Pulsed DC coil drive power
  • Standard process design
Availability:
Quantity:

Rosemount 8705 Flanged Magnetic Flow Meter Sensors Introduction

Rosemount 8705 Flanged Magnetic Flow Meter Sensors provide long-lasting, reliable performance in even the most challenging applications. An all-welded construction provides a hermetic seal that protects against moisture and other contaminants. The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from even the most aggressive environments. A removable and replaceable terminal block enables easy repair in the field without the need to replace the entire meter.

Rosemount 8705 Flanged Magnetic Flow Meter Sensors Feature


    • For maximum protection, a fully welded sensor housing provides a hermetic seal

    • Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field

    • Capture any potential process fluid leakage with optional secondary containment compartments to surround electrodes

    • Ensure reliability in the harshest environments with an all-welded sensor housing

    • Guard against installation damage and leading-edge wear with an optional lining protector

    • Minimize maintenance and repair with an obstructionless design featuring no moving parts

Rosemount 8705 Flanged Magnetic Flow Meter Sensors Specification

  • Accuracy - Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown

  • Line Sizes - ½-36 inch (15-900 mm)

  • Liner Materials-PTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber

  • Electrode Materials - 316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium

  • Flange Ratings - ASME B16.5 Class 150-2500DIN PN 10-40AS 2129 Table D and EAWWA C207 Table 3 Class D (30-36 inch only)

  • Submergence Protection - IP68 (Recommended with sealed cable glands)

  • Interchangeability - Compatible with all 8700 Series transmitters


Compatible with legacy transmitters: 8712D, 8712C, 8732C, 8742C


-Manuals

Rosemount 8700 Flanged Magnetic Flow Meter Sensors

-Data sheet

8700-Series-Magnetic-Flowmeter.pdf
