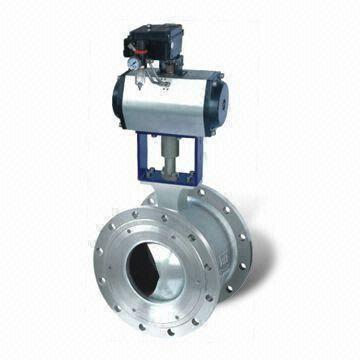

Segmented Ball Valve

Share to:
  • Application:General
  • Temperature of Media:High Temperature, Low Temperature, Medium Temperature, Normal Temperature
  • Power:Pneumatic
  • Media:Water
  • Port Size:1/2 inch Ball Valve
  • Structure:BALL
Availability:
Quantity:

Segmented Ball Valve Introduction

 A segmented ball valve is similar to a conventional ball valve, but with a contoured V-notch segment in the ball. This control valve has good rangeability, control, and shutoff capability. The V-notch ball provides positive shearing action and produces an inherent equal percentage flow characteristic.

Segmented Ball Valves are quarter-turn control ball valves for accurate throttling control of fibrous suspension

applications plus clean, dirty viscous, and corrosives liquids and gases. They are designed to meet the highest industry

standards for dynamic performance. Flanged or flangeless designs meet ANSI or ISA face-to-face dimensions.

Segmented Ball Valve Feature

Segmented Ball Valve design features include blow-out proof shaft protection, high flow capacity, splined ball-to-shaft

connection for ease of maintenance and zero backlash. Seat options include flexible metal, rigid metal and PTFE seats.

» Stainless Steel, Gr. 304 or 316 Trim

» Fusion Bonded Epoxy Coating

» Sizes: DN15 through DN400

» Body Styles: Flanged or Wafer Ends

» Pressure Class: ANSI #150~600, PN10 to PN64

» ASME B16.34, DIN 3202

» ASME B16.10, MSS SP-71, BS EN558

» ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226


Segmented Ball Valve Specification

DIN PN10-PN64,ANSI 150LB 300LB

DN25 to DN400

1"~16"

Material:
Body : WCB, CF8, CF8M
Bonnet : WCB, CF8, CF8M
Ball : A105, SS304, SS316
Stem : F6a, SS304, SS316
Seat : metal to metal
Special material on request.
Operated type
Manual, Pneumatic, Gear, Electric, Bare shaft, etc.
Structure:
V segmented
Flange connection:
EN1092 & ANSI B16.5 & JIS
Type
Flange, wafer

-Manuals

Segmented Ball Valve

-Data sheet


Segmented Ball Valve Application

A segmented ball valve is similar to a conventional ball valve, but with a contoured V-notch segment in the ball. This control valve has good rangeability, control, and shutoff capability. The V-notch ball provides positive shearing action and produces an inherent equal percentage flow characteristic.

Segmented ball valve are commonly found in flowing systems on ships, fire safe protection servicesand chlorine manufacturers. They are not recommended for use in pharmaceutical, bioprocessing, or food and beverage applications because they cannot be cleaned easily. Exceptions can be made for chemical or non-sterile applications
