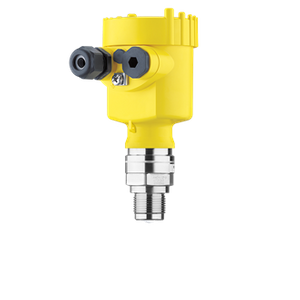

Non Contact Radar Level Meter

Share to:
  • Precision: ±15mm

  • Protection level: IP67 Frequency Range: 26.0 GHz

  • PCB board: Low power consumption PCB board

  • Application: Solid material, Strong dust easy to crystallize, condensation occasion.



Availability:
Quantity:

Non Contact Radar Level Transmitter Introduction

Non-contact radar level meter has small antenna size, easy to install; Non-contact radar, no wear, no pollution. Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.

In continuous non-contact level measurement with radar, the sensor sends microwave signals towards the medium from above. The surface of the medium reflects the signals back in the direction of the sensor. Using the received microwave signals, the sensor determines the distance to the product surface and calculates the level from it.


Liquids and solids are commonly measured with this measuring technique.


The non contact radar level transmitter adopts the electromagnetic wave pulse measurement method, the working frequency is 26GHZ, the beam energy is low, and it can be installed in various metal and non-metal containers or pipelines to continuously measure the level of liquid, slurry and particulate materials.

The non contact radar level transmitter is not harmful to the human body and the environment, and it is not affected by the specific gravity of the medium, not affected by the change of the dielectric constant, and does not require on-site calibration. It is not for industrial needs or economical to customers. It is a good choice to consider.

Non Contact Radar Level Transmitter Feature


    • Non-contact level measurement with radar is characterized by especially high measurement accuracy

    • Measurement is not affected by temperature, pressure or dust

    • User-friendly adjustment saves time

    • Easy installation, easy maintenance.

    • Low failure rate, high precision and high reliability.

    • A shorter wavelength, the reflection of solid surface inclination is better.

    • Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.

    • High signal-to-noise ratio, the level fluctuation state can obtain better performance.

Non Contact Radar Level TransmitterSpecification

Items

Specifications

Application:

Solid material, Strong dust easy to crystallize, condensation occasion.

Measuring Range:

80 meters

Process Connection:

Universal Flange

Medium Temperature:

-40℃ ~ 250℃

Process Pressure:

-0.1~0.3MPa

Accuracy:

± 15mm

Protection Grade:

IP67

Frequency Range:

26GHz

Signal Output:

4... 20mA/HART (Two-wire / Four) RS485/ Modbus

Explosion-proof Grade:

Exia ⅡC T6 Ga
Exd [ia] ⅡC T6 Gb



-Manuals

Non Contact Radar Level Transmitter

-Data sheet


Non Contact Radar Level Transmitter Application


Typical applications for continuous level measurement in the  process industry are:

  • Process tanks

  • Storage tanks

  • Silos

  • Mobile containers

Level gauges are mostly used for good such as:

  • Liquids

  • Pastes and slurrys

  • Powders, grains and granules

  • Bulk solids

Non Contact Radar Level Meter application
