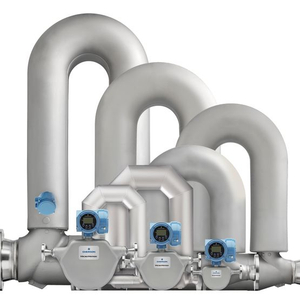

Micro Motion F-Series Coriolis Flow Meters

Share to:
  • Self-draining design for critical process control service
  • Low frequency, high sensitivity fit-and-forget meter
  • Smart Meter Verification (SMV) system monitoring
  • Stainless steel 316L or nickel alloy C-22 wetted parts
  • Select accuracy from ±0.20 to ±0.10% of flow rate
  • -150 to 400°F (-100 to 204°C) standard temp rating
    • High temp option on 1 inch & lower line sizes
    • -40 to 662°F (-40 to 350°C)
  • Standard pressure rating is 1450 psi (SS), 2160 psi (C22)
    • High pressure SS options on 1/4 & 1/2 line sizes
Availability:
Quantity:

Micro Motion F-Series Coriolis Flow Meters Introduction

Micro Motion F-Series Coriolis flow sensor measures necessary flow and density process variables simultaneously with reliable performance, even under the most demanding of process conditions. Multiple line sizes provide an ideal platform for batching, distribution, allocation and intra-plant measurement applications.

Micro Motion F-Series Coriolis Flow Meters Feature

  • Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design

  • Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes

  • Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and data logging

  • Broad range of meter approvals and certifications, including, but not limited to; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR

  • Custody Transfer Approvals from MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, and INMETRO Brazil

  • Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology

  • Gain real-time and in-process measurement integrity assurance with Smart Meter Verification

    Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters



Micro Motion F-Series Coriolis Flow Meters Specification

  • Liquid Accuracy / Repeatability

  • Up to ±0.1%of rate ( ±0.05%of rate)

  • Gas Accuracy / Repeatability

  • Up to ±0.5%of rate ( ±0.25%of rate)

  • Density Accuracy / Repeatability

  • Up to ±0.0005 g/cm3 ( ±0.0002 g/cm3)

  • Line Size

  • 1/4" (DN6) - 4" (DN100)

  • Pressure Range

  • Up to 6250 psig (430 barg)

  • Temperature Range

  • -148 °F to 662 °F (-100 °C to 350 °C)

  • Electronics (soft)

  • Expansive I/O options including mA, Frequency, Discrete, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus

  • Turndown

  • 20:1
