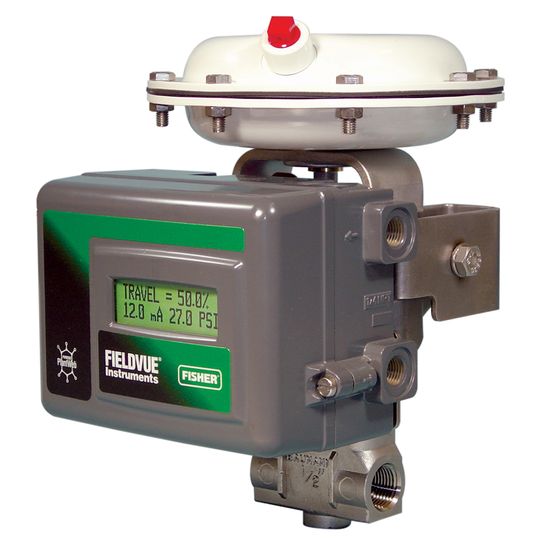

Fisher DVC2000 Digital Valve Controller

Share to:
  • Traditional positioning of a control valve by converting the 4-20mA DC input signal from the process controller to a pneumatic output signal to the actuator.
  • Automatic calibration and configuration utilizing the power of microprocessor technology.
  • Communication capability via the HART communications protocol to provide instrument and valve diagnostic information.
Availability:
Quantity:

Fisher DVC2000 Digital Valve Controller Introduction

The performance and simplicity of the Fisher FIELDVUE DVC2000 instrument allows for your operation to run closer to setpoint, improving product quality with more accurate control. Using FIELDVUE Performance Diagnostics, valve operation is monitored online to evaluate performance and reliability.

Fisher DVC2000 Digital Valve Controller Feature


  • The linkage-less feedback system is easy to install. At its very basic functionality, the DVC2000 digital valve controller has a local user interface that will allow you to configure, calibrate, and tune the instrument

  • Years of control experience has brought this product line to a high level of reliability and dependability.

  • The two-stage positioner design provides a mechanical platform that enables responsiveness to small input changes and tighter process control.

  • Tests can be performed to identify problems with the entire control valve assembly using ValveLink™ software, which assists in pinpointing problems without disrupting the process and before the equipment fails.

  • Available with an I/O Options Package which includes two integral limit switches and a stem position transmitter.

  • Features a compact size with multilingual liquid crystal display.

  • Integral mounting is available on Fisher GX, and 657 and 667 size i actuators.

Fisher DVC2000 Digital Valve Controller Specification

  • Area Classification

    Intrinsically Safe, Non-incendive for CSA and FM

  • Certifications

    CSA, FM, ATEX, IECEx, CUTR, PED, UL, Peso, KGS, INMETRO, NEPSI, ANZEx

  • Communication Protocol

    HART, 4-20mA Analog

  • Data Interface

    Wired

  • Diagnostics

    Yes

  • Input Signal

    Electric

  • Max Outlet Pressure

    101 psig

  • Mounting Type

    Integral Mounted

  • Operating Temperature

    Standard Temperature, High Temperature

  • Position Control

    Throttling Control, On/Off

  • Power Source

    Local

  • Process Control

    Flow, Pressure, Temperature, Level

  • Supply Media

    Air, Non Corrosive Gas

  • Other Configurations

    Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
